1. This machine be used for interpolation plane, foming surace and Keyway Etc. And can inserthe inclination in the 10" Mold and other within the scope of etcwork matter.
2.Enterprise suitable for sinale or small batch production.
The main performance characteristics:
1.The working table ofthe machine tool is provided with three diferent directions of feed (longitudinal, horizontal and rolary, therefore work obiect go through once clamping,Several surfaces in the machine tool machining
2.Hydraulic transmission mechanism with sliding pilow reciprocating motion and hydraulic feed device for working table.
3.The sliding piow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.
4 Hvdrawic coproltable have ram commutation oi for ol reversing mechanism in additionto hvdrawic and maoualfeed outer Fventhere single motor divevertical. horizontal and rotary fast moving.
5.Use hvdraulic feed the sloting machine., s when the work is over tuming back instanianeous feed. Therefore be better than mechanical siloting machine useddrum wheel feed.

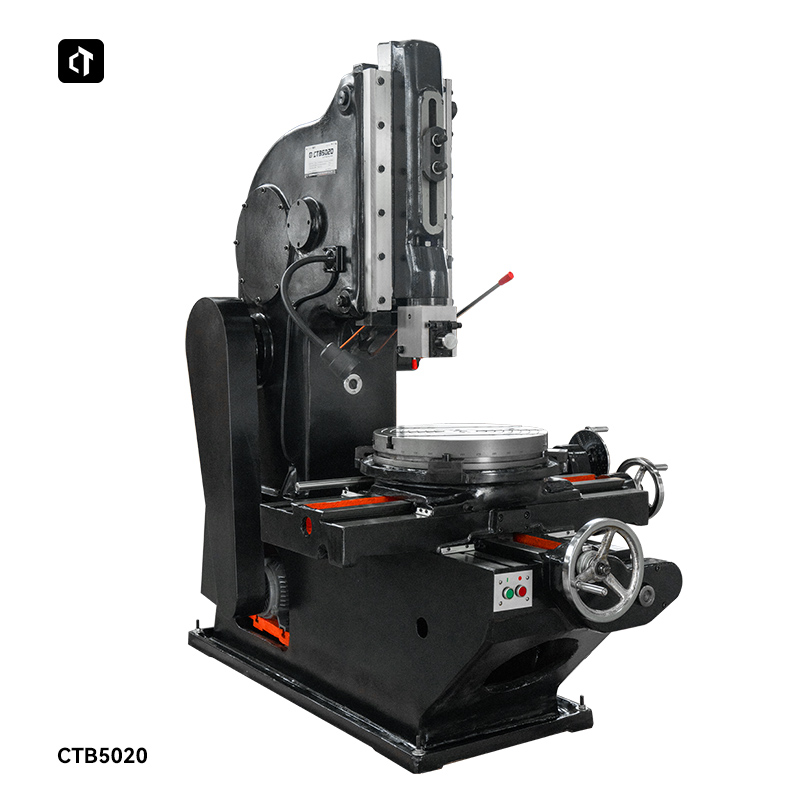

| Spec. Name | Unit | CTB5020 | CTB5032 |
| Ram MMax. Travel | mm | 220 | 340 |
| Ram Max Slotting Length | mm | 200 | 320 |
| Ram Motion Times | Reciprocating times/min | 32.50.80.125 | 20.32.50.80 |
| Ram Angle | Degree | 0-8° | 0-8° |
| Table Diameter | mm | 500 | 630 |
| Ram Vertical Adjusted Distance | mm | 230 | 315 |
| Distance Between Tool Bit Supporting Plane and Bed Front | mm | 485 | 600 |
| Distance Between Table Face and Carriage | mm | 320 | 490 |
| Table Max Longitudinal Movement | mm | 500 | 630 |
| Table Horizontal Max Movement | mm | 500 | 560 |
| Table Max Rotary Angle | Degree | 360 | 360 |
| Table Feed Range in Longitudinal and Horizontal Level | mm/ram reciprocating once | 0.08-1.21 | 0.08-1.21 |
| Table Rotary Feed Range | Degree/ram Reciprocating once | 0.052-0.7863 | 0.052-0.783 |
| Motor Power | KW | 3 | 4 |
| Motor Revolution(Calculated Value) | Rpm | 1430 | 960 |
| Net Weight（Approximately) | Kg | 2200 | 3000 |
| Overall Size(L*W*H) | mm | 1916*1305*1995 | 2261*1495*2245 |
